ASTM B338 Gr1 Gr2 Gr5 Cold Rolled Od 0.32

ASTM B338 Gr1 Gr2 Gr5 Cold Rolled Od 0.32"

Overview Product Description Titanium tube light weight, high strength, superior mechanical properties. It is widely use

Send your inquiry

DESCRIPTION

Overview

Basic Info.

Model NO.	customized
Surface	Bright
Delivery Time	7-10 Days
Inside Diameter	2.5~150mm
Product Name	Titanium Pipe and Tube
Transport Package	Standard Transport Package
Specification	customized
Trademark	ZEHAO
Origin	China
Production Capacity	100ton/Month

Product Description

Titanium tube light weight, high strength, superior mechanical properties. It is widely used in heat exchange equipment, such as tubular heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and conveying pipes.
Titanium pipe and Titanium tube

Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23Standard: ASTM B337,ASTM B338,ASTM B861Specifications :1.DimensionsA).Seamless titanium tube range:OD:2.0mm-219mmWT:0.3mm-120mmLength: <18000mmMaterial:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23B).Welded titanium tube range:OD:6mm-219mmWT:0.5mm-10mmLength:<18000mmMaterial: Gr1,Gr2,Gr3,Gr5,Gr9

Product	Titanium Pipe seamless pipe
Size	Cold-rolled: OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59")factory price 1.5mm 1.6mm 40mm titanium seamless pipe tube Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7")
Material	Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc.
Standard	ASTM B 338, ASTM B 337, ASTM B 861
Shape	Round

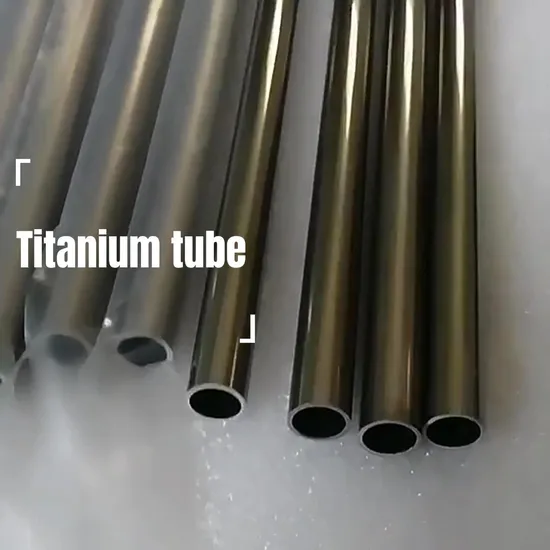

Product picture

Product Parameters

1.Chemical requirements
Grade	N(≤)	C(≤)	H(≤)	Fe(≤)	O(≤)	Al(≤)	V(≤)	Pd(≤)	Mo(≤)	Ni(≤)	Ti
GR1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
GR2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
GR3	0.05	0.08	0.015	0.3	0.35	/	/	/	/	/	bal
GR4	0.05	0.08	0.015	0.2	0.4	/	/	/	/	/	bal
GR5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	bal
GR7	0.03	0.08	0.015	0.3	0.25	/	/	0.12~0.25	/	/	bal
GR9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0	/	/	/	bal
GR12	0.03	0.08	0.015	0.3	0.25	/	/	/	0.2~0.4	0.6~0.9	bal
GR23	0.05	0.08	0.012	0.25	0.13	5.5~6.5	3.5~4.5				bal

2.Tensile requirements
Grade	Tensil strength(≥)		Yeild strength(≥))		Elongation(≥)%)
Grade	ksi	Mpa	ksi	Mpa	Elongation(≥)%)
GR1	35	240	20	138	24
GR2	50	345	40	275	20
GR3	65	450	55	380	18
GR4	80	550	70	483	15
GR5	130	895	120	828	10
GR7	50	345	40	275	20
GR9	90	620	70	483	15
GR12	70	483	20	345	18
GR23	120	828	110	760	10

Packaging & Shipping

Package Terms:Moisture-proof cloth, foam cotton inside, wooden case outside.Shipping Terms:Express,Air,Shipping or as your choice.

Company Profile

ASTM B338 Gr1 Gr2 Gr5 Cold Rolled Od 0.32"-4.49" Seamless Titanium Round Tube Pipe with Good Quality

Shandong Zehao Metal Materials Co., Ltd. is engaged in titanium and its alloys, zirconium and its alloys, tungsten, molybdenum, Monel, Inconel, Inconel, nickel and other superalloy and corrosion resistant alloy research, smelting and processing enterprises. Products cover sheet, strip, profile, bar, wire, pipe, pipe fittings, forged flange and so on.The factory covers an area of 120,000 square meters.Now we have vacuum induction furnace introduced from the United States, vacuum consumable arc furnace made in Germany, 2800mm four-high reversible rolling mill, vacuum annealing furnace and other series of production equipment.It can be customized to produce any size plate within 2.6m * 16m, and the maximum length of a single pipe can reach 15m.At the same time, we have more than 100 sets of various kinds of testing instruments, the main equipment includes: American non-destructive testing system, spectral analyzer, carbon and sulfur tester, universal testing machine, ultrasonic testing system, fatigue testing machine, etc.The company has more than ten years of export experience, the products are exported to the United States, the United Kingdom, Germany, Russia, France, Brazil, Japan, South Korea, India, Vietnam, Australia, the Philippines, Zambia, Indonesia and other countries.

Our Advantages

WHY CHOOSE US1.High quality products, durable, strict inspection.2.We offer quality, strong and rugged products.3.Advanced technology, to provide customers with customized products.4.High quality + ex-factory price + rapid response + reliable service, we strive to provide.5.Professional workers and efficient foreign trade team, to provide services for you.

FAQ

Q: How about the MOQ? If my first order qty is small, will you accept?
A: We would like to do our best to support your trial order qty, so even 1 pc or 1 kg is ok to start cooperation; because we have confidence to move on second order with your esteemed company.
Q: What is your payment terms ?
A: Commonly two payment term for new customers: 1) 30% T/T as deposit , 70% balance against B/L copy; 2) 100% Irrevocable L/C at sight;If you need any other terms, pls feel free to contact us too, we will try our best.
Q: How long is your delivery time?
A: Our daily inventory is more than 8000 tons, so for common product size, just need 5 days from stocks; if the special size from new production, delivery 7 days.
Q: How about the samples ? is it free or extra fees?
A: Yes, we would like to supply the samples before order; if the samples from stock, it will be free; if the samples from new production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
Q: How to control and guarantee your shipment quality?
A: 1) All our factories are ISO9001, CE certified facility; 2) World famous origin mills as TISCO, Baosteel. 3) Ex factory inspection by our own laboratory. 4) SGS/BV Third party inspection before delivery.
